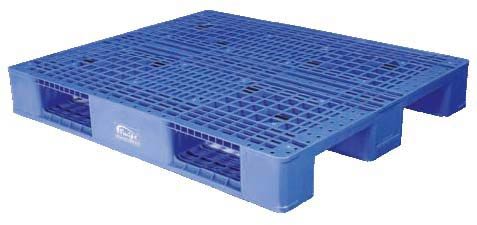

HDPE 4 Way Rackable Pallets

HDPE 4 Way Rackable Pallets are made under the strict guidance of our engineers and other professionals. 4 Way Entry Non Reversible Rackable Pallet, manufactured, supplied and exported by us, are carefully examined on diverse parameters. These HDPE 4 Way Rackable Pallets can be availed, from us, at the market leading prices.

Specifications

Pallet Type	4 Way Entry Non Reversible
Leg Type	3 longitudinel legs
Racking	Suitable for Horizontal & Drive-in rack
Fork Lift Handling	Suitable
Stacker	Suitable for handling from Width side
Hand Pallet Truck	Suitable for handling from Width side
Pallet Top	Perforated
Colour	Blue/Grey/Green/Black or Any*

Technical Specifications

Model Number	Pallet Size			Fork Entry Size (L1)	Leg Size (L2)	Fork Entry (W1)	Bottom Fork Clearance()H1	Bottom Clearance (H1)	Load Capacity (kg)
Model Number	Length (L)	Width (W)	Height (H)	Fork Entry Size (L1)	Leg Size (L2)	Fork Entry (W1)	Bottom Fork Clearance()H1	Bottom Clearance (H1)	Static Load	Dynamic Load	Rack Load
SIP-M24-1210NHH	1200	1000	160	880	360	700	115	70	6000	1000	1000
SIP-M24-1210NH	1200	1000	160	880	360	700	115	70	4000	750	750
SIP-M24-1208NH	1200	800	145	710	190	600	105	80	4000	750	1000
SIP-M24-1111NH	1100	1100	160	800	200	800	115	85	4000	1000	1000
SIP-M24-1212NH	1200	1200	160	880	360	860	115	70	4000	1000	1000
